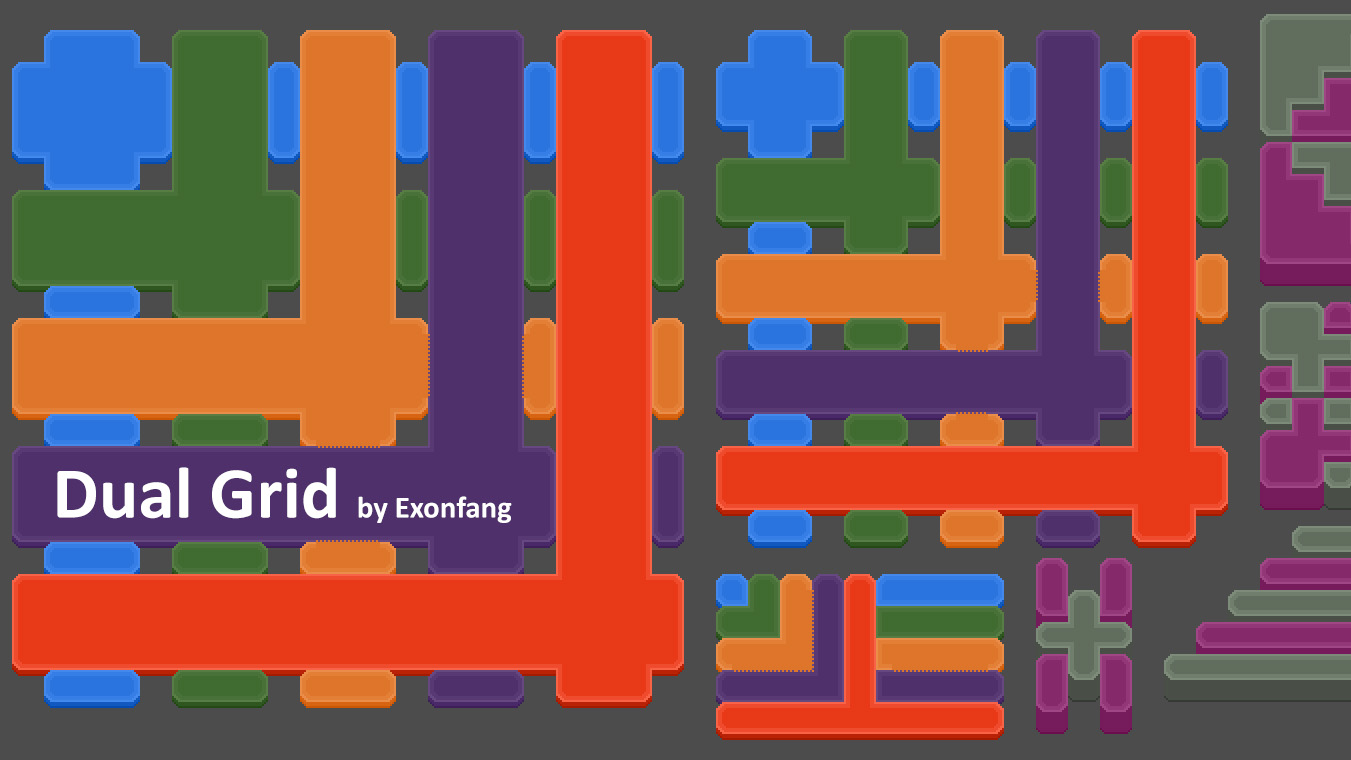

A DualGrid Tilemap Addon Supporting Unlimited Adjacent Terrains

Adds a new DualGrid node (which extends TileMapLayer) to create a dual-grid tiling system for Godot which supports all mixes of adjacent terrains while still only requiring 29 unique tiles per terrain — without requiring unique art for each bespoke mix.

Bespoke mixes can be optionally added for any combination of two terrains. In the example project, this is configured for the Purple terrain mixing with the Orange terrain, and the Purple terrain mixing with the Red terrain. Tile variants are also fully supported.

This allows just a few tiles to combine and create a world of endless terrain possibilities.

Key Advantages Over Other Dual Grid Systems

Other Dual Grid implementations either require each unique terrain to sit on their own layer, require bespoke mixes for every unique combination of terrain, or achieve their visuals through complicated logic that's difficult to extend or directly interact with. This implementation aims to fix these problems, and offers the following key advantages:

Supports unlimited terrain combinations while only requiring 29 unique tiles per terrain.
Supports unlimited bespoke terrain combinations to override the default generic mix tiles.
Supports variants of any tile.
Easily supports overlaid tile art (See example project usage).
The DualGrid properties are passed through to each dynamically created child TileMapLayer which serve as the display layers, so they are still easily accessible.
Particularly useful for sandbox games that need to support a large number of terrains potentially appearing next to each other.

Example Project

The repository on GitHub contains an example Godot 4.4 project in /example/ with seven terrains already configured using the addon.

The example shows using the LayerOrderOverrideRule to create an exception to fix the example project's specific art.

The example Purple terrain shows two configured BespokeMixRule which set up the Purple terrain mixing with the Orange and Red terrains, as well as each unique kind of tile variant configured.

Installation

Install the plugin by adding addons/dualgrid to your Godot Project, then in Project Settings > Plugins, enable DualGrid.

Basic Usage

Configure your DualGridTileSet just as you would configure a normal TileSet, with one terrain per tile source, except that peering bits are not configured manually and are instead identified by tile position.

See the GitHub repository for example tile art, base template, and a neighborhood guide.

Arrange each 4x4 dual grid tile set in a single horizontal row. Each 4x4 dual grid tile set is identified by its x position offset as the ”Atlas Offset”.

The first 4x4 tile set (atlas offset 0, the grid from (0,0) to (3,3)) is always the main terrain mixed with no other terrain. This tile set is required.
The second 4x4 tile set (atlas offset 4, the tiles from (4,0) to (7,3)) is always the main terrain ”generic mix” with any other terrain that does not have a bespoke mix. This tile set is also required.
Additional bespoke mix and edge variant tile sets can occupy any atlas offset after the two required tile sets.
Bespoke mixes of two terrains can be configured in either terrain’s tile set. See Configuring Bespoke Mixes.
The tile at (2,1) in each tile source is used as the full art tile for that terrain. All other tiles at relative (2,1) in each 4x4 generic mix, bespoke mix, or any edge variant tile sets are unused.
The tile at relative (0,3) in each 4x4 dual grid tile set is unused, including in the two required tile sets.
Full tile variants can occupy any unused position, as they are specified by their full atlas coordinates. See Configuring Tile Variants.
Place tiles in the DualGrid using DualGrid.set_world_tile instead of TileMapLayer.set_cell, or by drawing any tile from a terrain's tile source in the DualGrid node via the editor.

For tiles that should not need to actually overlap with each other, no LayerOrderOverrideRule should be required. If your tiles might overlap with each other, for example, to create the illusion of depth or walls, you may need to create one or more LayerOrderOverrideRule depending on your specific art. You can see an example LayerOrderOverrideRule configuration in the example scene.

NOTE: The LayerOrderOverrideRule can be very confusing to configure without visuals. I recommend adding your art and placing a few different terrains next to each other in the DualGrid so you can visually identify cases where your art is ordered incorrectly, similar to the example project scene. Use the Live Ordering Update Preview to see your masking changes affect the DualGrid in real time. For a large DualGrid, toggle Live Ordering Update Preview to false and use the Refresh Display Layer Preview button, as each change recalculates the display tiles for the entire DualGrid.

If your tiles extend in the opposite direction as the example artwork, Reverse Default Layering Order can be used to flip the ordering.

To use physics layers from the Display Tiles, set Display Collision Enabled to true.

Configuring Bespoke Mixes

Bespoke mixes are unique tile sets that replace the generic mix edge tiles for the two specific terrains they are configured for. These allow you the option to create unique art for any specific transition, without the exponential art problem that requiring them creates.

Create a BespokeMixRule within your DualGridTileSet for each bespoke mix, where the Primary Source ID is also the tile source ID where the 4x4 bespoke mix is located, and the Secondary Source ID is set to the specific terrain that the primary source ID terrain is mixing with. Then, specify the Atlas Offset to locate that bespoke mix set within the terrain for that source ID. In the example project, in the Purple tile source, the Orange bespoke mix is offset by 8 (the grid from (8,0) to (11,3)), and the Red bespoke mix is offset by 12 (the grid from (12,0) to (15,3)).

Configuring Tile Variants

Tile Variants can be configured to replace the art of any terrain via the DualGridTileSet resource.

Configure full tile variants in the TileVariantRule Full Tile Variant Atlas Coords array by specifying the full atlas coordinates of each available alternative full tile.

Configure alternate edge and generic mix edge tile variants in the Edge Variant Offsets and Generic Mix Edge Variant Offsets arrays by specifying the atlas offset(s) of the 4x4 set(s) of variant edge tiles.

Configure Bespoke edge tile variants in the BespokeMixRule Bespoke Mix Variant Offsets array by specifying the atlas offset(s) of the 4x4 set(s) of variant bespoke edge tiles.

Variants are picked consistently for each world position, so they don't change when the display layers are refreshed or neighboring tiles are edited. Change the DualGrid's Variant Seed to get a different arrangement of variants.

How often each tile is picked is controlled by Godot's built-in TileData Probability property, which calculates relative probability from all available tiles. Missing/empty tiles in each variant set are ignored. For example, you do not need to create variants for an entire edge set to add a variant for a single edge tile if desired.

Setting Tile Variant Probabilities

The full tile uses (2,1) and any Full Tile Variant Atlas Coordinates configured; edges tiles, generic mix edge tiles, and bespoke edge tiles use available tiles from their main set and any linked variant sets for each edge position. Missing/empty tiles are ignored.

To set a tile's probability in the editor:

Open the TileSet resource.
Select the terrain's tile source in the TileSet, switch to Select mode, and click on a tile or one of its variant tiles. Multiple tiles can be selected to edit them together.
In the tile's properties, expand Miscellaneous and set Probability (defaults to 1.0).
Press Refresh Display Layer Preview on the DualGrid to see the change, as probability changes don't refresh the preview automatically.

Upgrading from Version 1 to Version 2

If you've already integrated version 1, here are some instructions to get your implementation updated to version 2. If this is your first time installing DualGrid, just follow Basic Usage.

Install and enable the new DualGrid addon, according to Installation.
Rename class_name DualGrid from the old dualgrid.gd in your project to DualGridOld to prevent a class_name conflict. Update any references to DualGrid in your project to DualGridOld. This preserves existing functionality while you work through updating your integration.
Convert your TileSet resource to a DualGridTileSet resource.
In your DualGridTileSet, transmute your tile_mix_map configurations into BespokeMixRule(s).
If you previously made any specific adjustments for edge cases similar to the example project, instead of editing the addon directly, configuring LayerOrderOverrideRule(s) for the DualGrid should be sufficient.
Replace your previous DualGridOld with new DualGrid nodes (now from the addon.)
Update any code using set_cell on the old DualGrid to set_world_tile.

Contributing

I was inspired to create and post this project under the MIT license because of the dedicated and amazing Godot Community. I intend on using this system for several of my own projects, so I will be actively maintaining this repository for the forseeable future. I welcome any contributions from the community!

License and Required Disclosures

License

This project is released under the MIT License

References

This project would not have been possible without other developers who created their own Dual Grid implementations and shared that code openly. They were a huge inspiration for this project!

Credits

Exonfang contributed the original DualGrid implementation and tile variant functionality.
Jesse-Goertzen contributed a significant refactor of the original DualGrid implementation into a proper addon, adding BespokeMixRule, LayerOrderOrverrideRule, and editor preview functionality.
