Godot Slang

This project is a work-in-progress to support Slang-based compute shaders in Godot. The primary goal of this project is to simplify working with compute shaders within Godot.

Features

• Simple and straightforward handling of .slang files. You can load("res://something.slang") and it works exactly how you would expect.
• Uses a high-level API for binding shader parameters, similar to GDShader (set_shader_parameter(...)).
• Minimizes boilerplate by automatically binding shader parameters for common textures (color, depth, normal/roughness, etc.), current time, shader globals, and more.
• Allows exposing shader parameters to the editor via a familiar export pattern.
• First-class support for compositor effects.
• Supports most major Slang features, including modules.

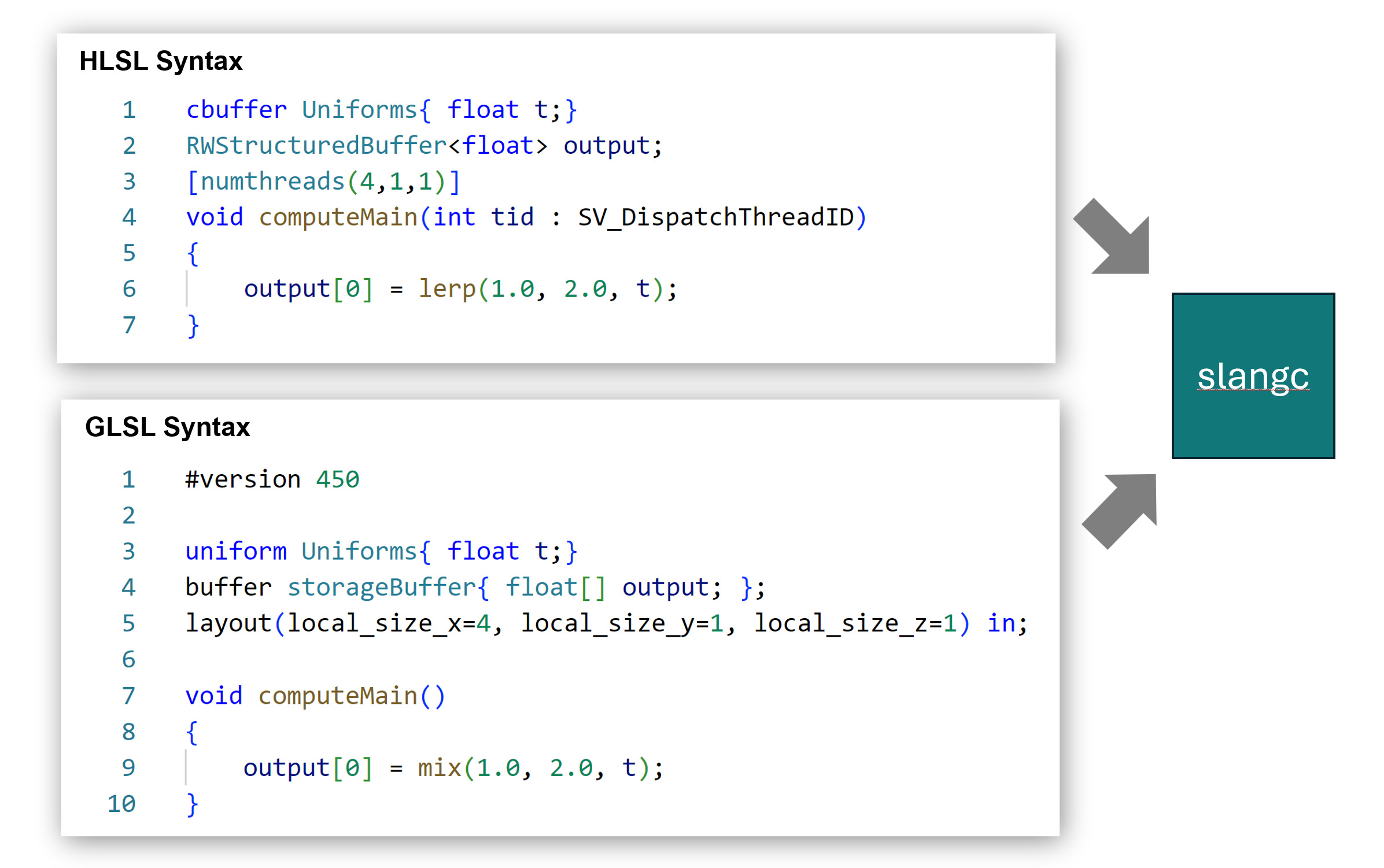

• Supports most .glsl and .hlsl shaders in addition to .slang.

Usage

After installing this plugin in Godot, you'll see a few new types available in the editor:

• ComputeShaderFile
  • A resource imported from a .slang file in the project. Includes a list of ComputeShaderKernels.
  • Unlike .glsl compute shaders, a Slang compute shader can have more than one entry-point.
• ComputeShaderKernel
  • A resource containing the compiled SPIR-V and reflection information about the shader parameters for a single entry-point.
• ComputeShaderTask
  • Similar to a "material" in the fragment shader world. Associated with a single compute shader file.
  • Stores shader parameters and exposes methods for dispatching the shader.
  • Automatically reloads if the attached compute shader is modified.
• ComputeShaderEffect
  • This offers a convenient way to use Slang compute shaders in CompositorEffects. For many shaders, you can create an effect from a Slang file and have it running with no additional application code required.
• ComputeTexture (experimental)
  • Texture2D resource backed by a compute shader.

For more information about these classes, see the class documentation.

After installing, Slang files in your project will be automatically imported as compute shaders. Each function in the Slang source annotated with [shader("compute")] will be imported as a ComputeShaderKernel.

If you'd like, you can ignore the ComputeShaderTask and ComputeShaderEffect classes, and instead directly bind your shader parameters from code just like you would with a standard .glsl import. If you choose to do this, it can be helpful to explicitly declare Vulkan bindings in your shader:

[[vk::binding(1,2)]]
Texture2D explicit_binding_texture;

Installation

Available in the Godot asset library, find it in the AssetsLib tab within the editor.

Files for the addon can also be downloaded from the Releases page, GitHub Actions builds on each commit to main, or you can build from source as described below.

After downloading a release, you can install this addon in Godot by:

• Opening the AssetsLib tab
• Clicking "Import..." at the top right
• Selecting the .zip file that you downloaded above

Demo

See example shaders and their usage in the demo project. Here is an example of what a Slang compute shader for Godot might look like:

import godot;

[gd::compositor::ColorTexture]
RWTexture2D<float4> scene_color;

// makes the property editable in the inspector
[gd::Export]
float3 luminance_weights;

[shader("compute")]
[numthreads(8, 8, 1)]
void computeMain(uint3 threadId: SV_DispatchThreadID) {
    float4 color = scene_color[threadId.xy];
    float luminance = dot(color.rgb, luminance_weights);
    scene_color[threadId.xy] = float4(luminance.xxx, color.a);
}

Library

This plugin also includes a utility Slang module for common compute/CompositorEffect use-cases in Godot.

For example, the gd::compositor::ColorTexture attribute used above, which automatically binds the screen color texture to the parameter when the shader is used in a ComputeShaderEffect. This library includes many other attributes, Godot-specific utility functions such as normal_roughness_compatibility, and declares the SceneDataBlock struct, as exposed by the Godot engine to compositor effects.

Building

Set up your dev environment for compiling GDExtension with scons.

After cloning the repo, initialize submodules:

git submodule update --init --recursive

Then, build the GDExtension:

scons target=editor debug_symbols=yes dev_build=yes api_version=4.5

Work-in-progress

Web documentation is currently bare-bones, but in-progress. If you have questions or comments, please start a discussion.

License

This project is available under the MIT license.

This project includes code from Slang, licensed under the Apache License 2.0.
