Clef

Free & Open Source (MIT)

Clef is an open-source MIDI music plugin for Godot 4.6+, made of two core modules:

MIDI Playback Engine — Real-time SF2 SoundFont synthesis, piano roll editor, CC/pitch bend/modulation, and JSON ↔ MIDI bidirectional conversion
7-Agent AI Composition System — Claude Code-powered multi-agent collaboration for composing, arranging, reviewing, and expression injection. Turn natural language descriptions into MIDI music.

Features

MIDI Playback Engine

Real-time MIDI stream playback via an AudioStreamPlayer pool
SF2 SoundFont synthesis with multi-timbre support
Real-time CC (Volume / Expression / Pan / Reverb / Vibrato), Pitch Bend, Modulation
Configurable polyphony limit, loop playback, and release time multiplier
In-Inspector preview playback, JSON ↔ MIDI bidirectional conversion

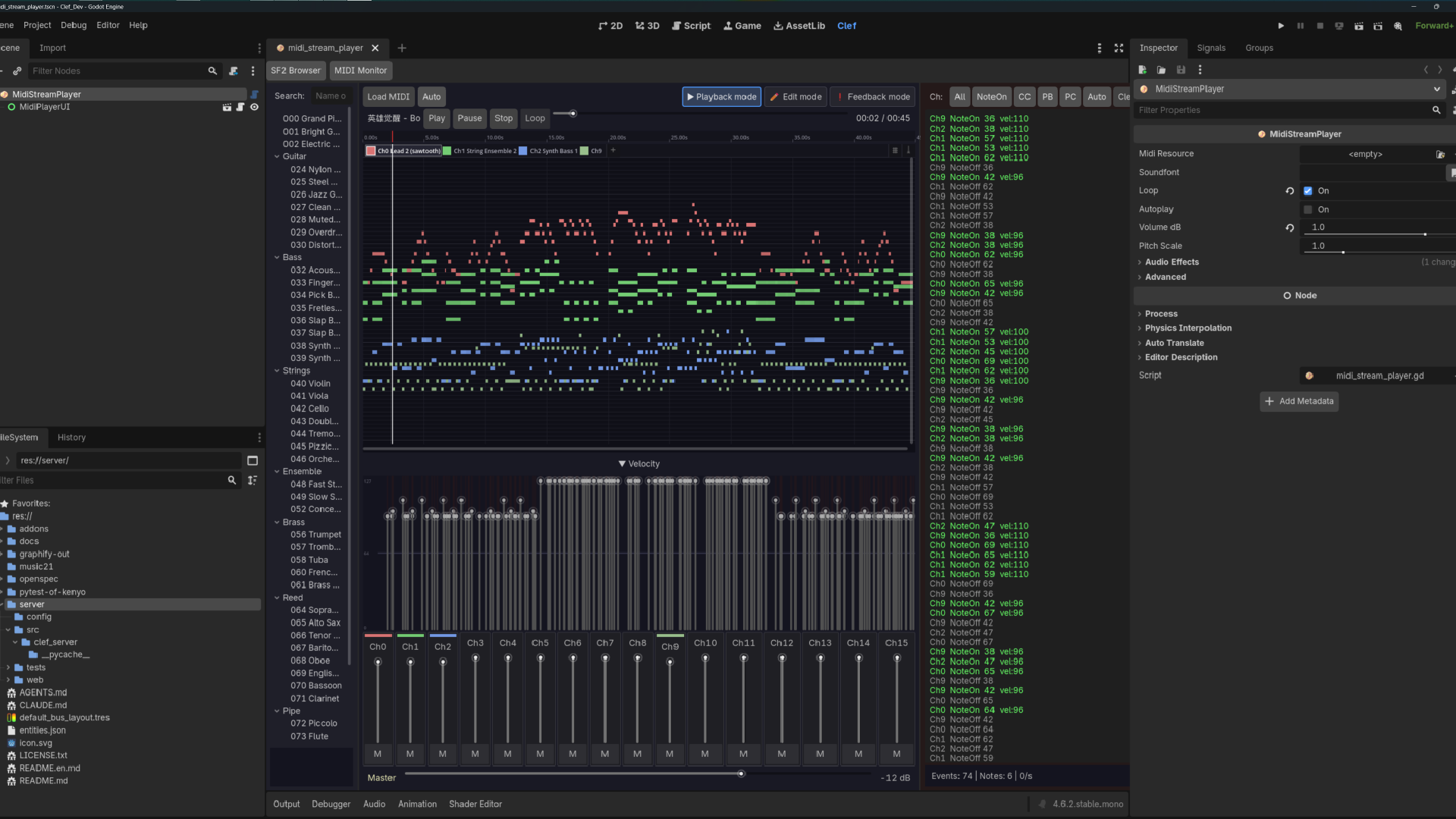

Piano Roll Editor

Three modes: Playback (read-only), Edit (full modification), Feedback (annotated review)
Visual note editing: drag to create, move, resize, box-select batch operations
Ctrl+C/V copy/paste, Delete removal, Ctrl+Z/Shift+Z undo/redo
Multi-track management: add/switch tracks, GM patch selection (128 standard instruments)
Velocity editing, fine pitch adjustment, mute/inverse mute
Export edited MIDI, export Agent feedback JSON (with selection context)

AI-Powered Composition (Clef Compose)

Triggered via /clef-compose — describe your music in natural language, get MIDI
7 specialized Agents: Composer, Harmonist, Rhythmist, Orchestrator, Reviewer, Revision, Leader
ABC notation → MIDI fully automated pipeline (validate → merge → convert)
music21 technical validation (6 checks: key, range, leaps, duration, alignment, overlaps)
Interactive direction demo + Leader-driven iteration (up to 3 rounds of auto-optimization)
SF2 soundfont-aware, automatically adapts to target instrument characteristics

Quick Start

Install the Godot Plugin

Copy the addons/clef/ directory into your Godot project's addons/ directory
Enable the plugin: Project → Project Settings → Plugins → Clef
Configure the default SoundFont: Project → Project Settings → General → Clef → Default Soundfont, select a .sf2 file

We recommend GeneralUser GS (~30 MB, CC BY 3.0).

Play a MIDI File

Add a MidiStreamPlayer node to your scene and configure the MIDI resource and SoundFont path in the Inspector.

@onready var player: MidiStreamPlayer = $MidiStreamPlayer

func _ready():
    player.start_playback()
    player.finished.connect(_on_song_end)

AI Composition

Use the /clef-compose command in Claude Code with a natural language description:

/clef-compose Write a boss battle theme in D major, 140 BPM, 30 seconds, orchestral style

The system handles the full pipeline: requirement analysis → music planning → direction demo → full composition → quality review → iterative refinement → expression injection → MIDI output.

See the LLM Composition Guide for details.

Editor Tools

Tool	Description
Inspector Preview	Playback controls appear at the bottom of Inspector when a `MidiStreamPlayer` node is selected
JSON → MIDI	Menu Clef Utility → Compose MIDI from JSON or right-click `.json` files
MIDI → JSON	Menu Clef Utility → Export MIDI to JSON or right-click `.mid` / `.tres` files
File Import	`.mid` files auto-import as `MidiResource`, drag-and-drop into scenes

Supported MIDI Events

Event Type	Description
Note On/Off	Note on/off with velocity
CC 1 (Modulation)	Vibrato depth
CC 7 (Volume)	Channel volume
CC 10 (Pan)	Stereo panning
CC 11 (Expression)	Expression / velocity scaling
CC 64 (Sustain)	Sustain pedal
CC 91 (Reverb)	Reverb depth
Pitch Bend	Pitch bend (±2 semitones)
Tempo Change	Tempo changes

Documentation

Document	Description
User Guide	Complete plugin guide (installation, playback, API, FAQ)
LLM Composition Guide	Tips and examples for describing music in natural language

Project Structure

addons/clef/              # Godot plugin
  player/                 # Playback engine (MidiStreamPlayer, SF2 synthesis, voice pool)
  converter.gd            # JSON ↔ MidiData conversion
  midi_reader.gd          # MIDI binary parser
  midi_writer.gd          # MidiData → MIDI output
  midi_resource.gd        # Resource subclass
  editor/                 # Editor plugin (context menu, Inspector)
  ui/                     # Player UI
  templates/              # LLM composition templates
  knowledge/              # SoundFont instrument profiles
  sound_front/            # SoundFont files
  tests/                  # Tests

.claude/                  # Claude Code composition system
  skills/clef-compose/    # Main Skill + Python toolchain
    SKILL.md              # Composition workflow definition
    references/           # On-demand reference docs
    scripts/              # abc_to_midi, validate_abc, merge_abc, inject_expression, etc.
    tests/                # Python tests
  agents/                 # 7 Agent definitions

Requirements

Godot 4.6+
Python 3.10+ (LLM composition toolchain)
music21 (pip install music21, composition validation)
mido (pip install mido, MIDI I/O)
FluidSynth (midi-to-audio export, optional)
ffmpeg (OGG / MP3 export, optional)
Claude Code (LLM composition features)

Acknowledgements

Audio playback references implementation ideas from arlez80/Godot-MIDI-Player, including mix latency compensation, ADSR envelope interpolation, and the release delay mechanism.
