Godot QR Plugin

Godot plugin that provides a unified GDScript interface for generating and scanning QR codes on Android and iOS using native platform implementations.

The plugin supports:

• Generating QR code images and textures
• Scanning QR codes from images
• Receiving scan results and errors via signals

Key Features:

• Unified GDScript API for Android & iOS
• Generate QR codes as Image or ImageTexture
• Custom foreground and background colors
• Scan QR codes from Image data
• Signal-based scan results and error handling
• Native platform performance

Table of Contents

• Demo
• Installation
• Usage
• Signals
• Methods
• Classes
• Platform-Specific Notes
• Links
• All Plugins
• Credits
• Contributing

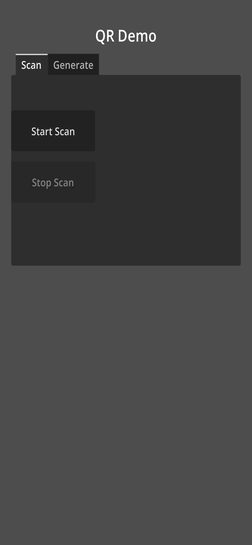

Demo

Try the demo app located in the demo directory.

Installation

_Before installing this plugin, make sure to uninstall any previous versions of the same plugin._

_If installing both Android and iOS versions of the plugin in the same project, then make sure that both versions use the same addon interface version._

There are 2 ways to install the QR plugin into your project:

• Through the Godot Editor's AssetLib
• Manually by downloading archives from Github

Installing via AssetLib

Steps:

• search for and select the QR plugin in Godot Editor
• click Download button
• on the installation dialog...
  • keep Change Install Folder setting pointing to your project's root directory
  • keep Ignore asset root checkbox checked
  • click Install button
• enable the plugin via the Plugins tab of Project->Project Settings... menu, in the Godot Editor

When installing via AssetLib, the installer may display a warning that states "_[x number of]_ files conflict with your project and won't be installed." You can ignore this warning since both versions use the same addon code.

Installing manually

Steps:

• download release archive from Github
• unzip the release archive
• copy to your Godot project's root directory
• enable the plugin via the Plugins tab of Project->Project Settings... menu, in the Godot Editor

Usage

Add QR node to your main scene or register it as an AutoLoad singleton.

Generating a QR Code:

@onready var qr := $QR

func _ready():
    var img := qr.generate_qr_image(
        "https://godotengine.org",
        512,
        Color.BLACK,
        Color.WHITE
    )
    $TextureRect.texture = ImageTexture.create_from_image(img)

Generating a Texture directly:

var texture := qr.generate_qr_texture("Hello from Godot!")
$Sprite2D.texture = texture

Scanning a QR Code from an Image:

@onready var qr := $QR

func _ready():
    qr.qr_detected.connect(_on_qr_qr_detected)
    qr.qr_scan_failed.connect(_on_qr_qr_scan_failed)
    qr.scan_qr_image(my_image)


func _on_qr_qr_detected(data: String) -> void:
    print("QR detected: %s" % data)


func _on_qr_qr_scan_failed(error: ScanError) -> void:
    print("QR scan failed due to '%s'" % error.get_description())

Scanning live camera feed

Combine the QR Plugin with the Native Camera Plugin to scan QR codes directly from your device’s live camera feed. See the demo app for a working example.

Signals

• qr_detected(data: String) - Emitted when a QR code has been successfully scanned along with the scanned data
• qr_scan_failed(error: ScanError) - Emitted when scanning a QR code has failed

Methods

• generate_qr_image(uri, size, foreground, background) -> Image
  • Generates a QR code as a Godot Image.
  • uri: String – Data to encode
  • size: int – Output image size in pixels (default: 512)
  • foreground: Color – QR foreground color
  • background: Color – QR background color
• generate_qr_texture(uri, size, foreground, background) -> ImageTexture
  • Same as generate_qr_image(), but returns an ImageTexture.
• scan_qr_image(image: Image) -> void
  • Scans a QR code from a Godot Image.
  • Results are returned asynchronously via signals.

Classes

This section documents the GDScript interface classes implemented and exposed by the plugin.

ImageInfo

Internal data wrapper used for transferring image data between Godot and native code.

Properties (internal):

• buffer: PackedByteArray
• width: int
• height: int
• format: Image.Format
• has_mipmaps: bool

ScanError

Encapsulates QR scanning errors.

Error Codes:

• NONE
• INVALID_IMAGE
• NO_CODE_DETECTED
• SCANNER_FAILURE
• INTERNAL_ERROR

Methods:

• get_code() -> ScanError.Code
• get_description() -> String

Platform-Specific Notes

Android

• Download Android export template and enable gradle build from export settings
• Troubleshooting:
• Logs: adb logcat | grep 'godot' (Linux), adb.exe logcat | select-string "godot" (Windows)
• You may find the following resources helpful:
  • https://docs.godotengine.org/en/stable/tutorials/export/exporting_for_android.html
  • https://developer.android.com/tools/adb
  • https://developer.android.com/studio/debug
  • https://developer.android.com/courses

iOS

• Follow instructions on Exporting for iOS
• View XCode logs while running the game for troubleshooting.
• See Godot iOS Export Troubleshooting.

Links

• AssetLib Entry Android
• AssetLib Entry iOS

All Plugins

Credits

Developed by Cengiz

Based on Godot Mobile Plugin Template

Original repository: Godot QR Plugin

Contributing

See our guide if you would like to contribute to this project.
